Description:
These Hobbywing QuicRun 1625 25A, 1060 60A and 1080 80A ESCs can be installed on RC 1/8, 1/10, 1/16 or 1/18 touring car, truck, monster, truggy, rock crawler and tank. Various running modes ESCs with different BEC output are free to choose for your RC vehicle.

Features:
1. These Hobbywing QuicRun 1625 25A, 1060 60A and 1080 80A ESCs are compatible with RC 1/8, 1/10, 1/16 or 1/18 touring car, truck, monster, truggy, rock crawler and tank.
2. Waterproof and dust-proof brushed ESCs are capable of dealing with different weather condition races.
3. Forward/reverse/brake running mode for 1625 25A ESC is good enough for daily RC car practice.
4. Forward/reverse/brake, forward/brake and forward/reverse 3 running modes can be switch freely for 1060 60A ESC.
5. Forward/reverse running mode for 1080 80A ESC is specially design for rock climbing crawler.
6. Portable size with built-in capacitor module allow these ESCs to have a superior electric current endurance.
7. Great built-in BEC output capacity.
8. Easy to use for beginner with automatic throttle range calibration.
9. Use jumper cap to set the parameters easily at ESC program port.
10. Low voltage cut-off protection for battery, over-heat protection and throttle signal loss protection are inbuilt.
11. Tunable drag brake and drag brake rate for different vehicles, tracks and control feel for 1080 80A ESC.
12. Adjustable PWM frequency combined with advanced freewheeling(/DEO) technology guarantees great throttle linearity and driving feel for 1080 80A ESC.
13. 9 levels of acceleration/pun from soft to aggressive for different vehicles, tires and tracks for 1080 80A ESC.
14. Proportional brake with 9 levels of initial brake force, maximum brake force and drag brake force for 1080 80A ESC.
15. Exquisite workmanship ESCs are perfect upgrade parts to your RC vehicle.

Specification:

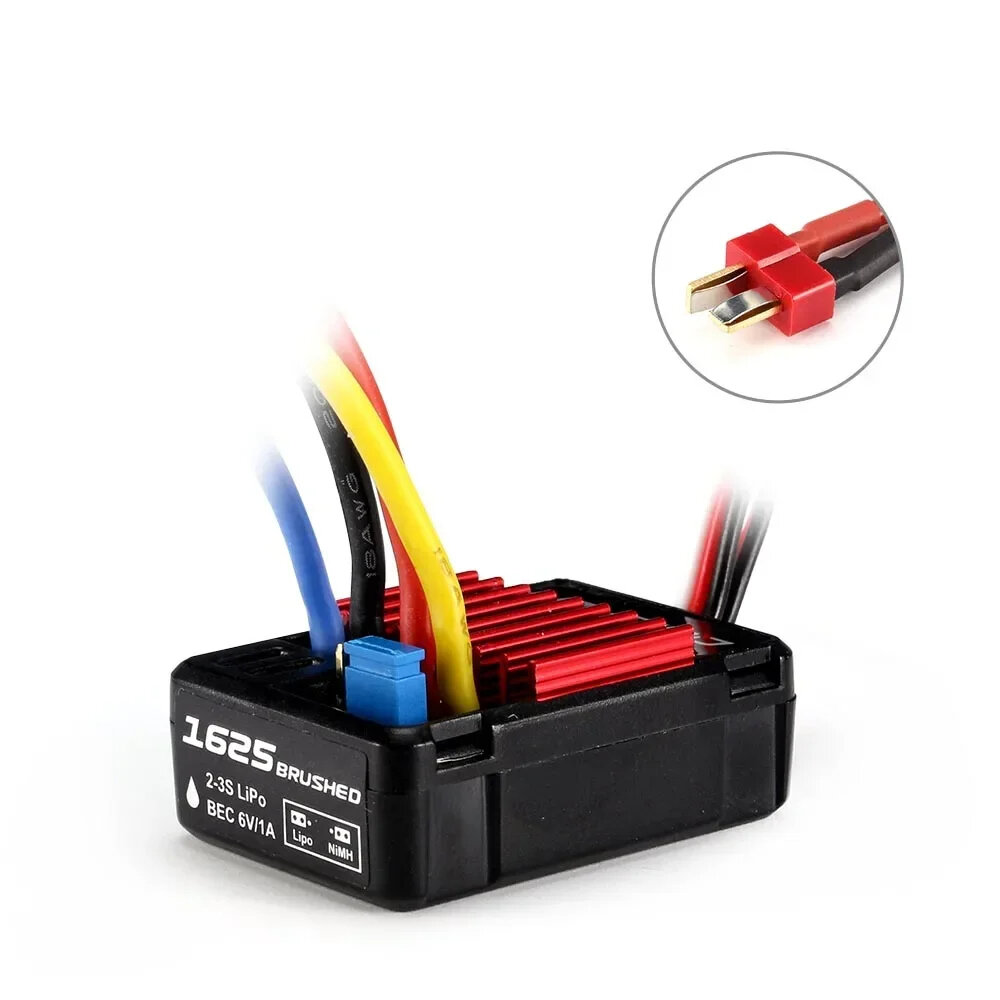

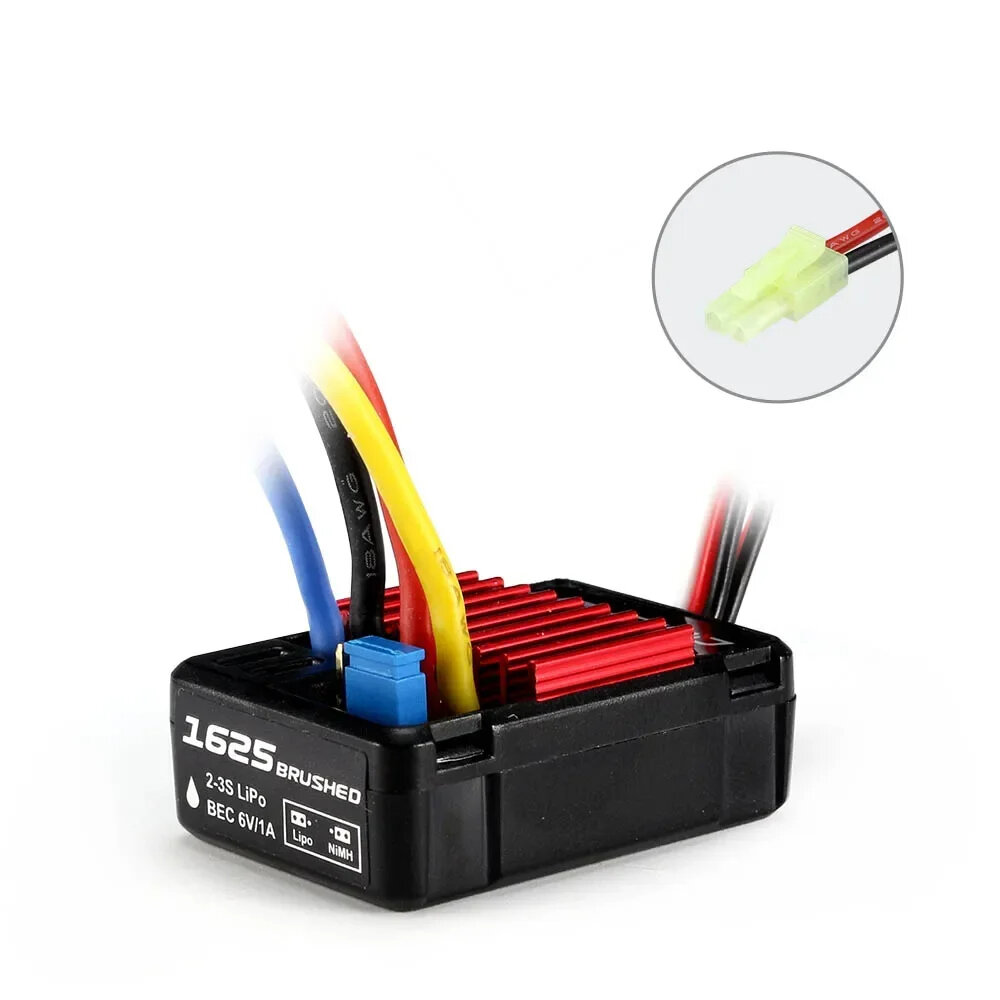

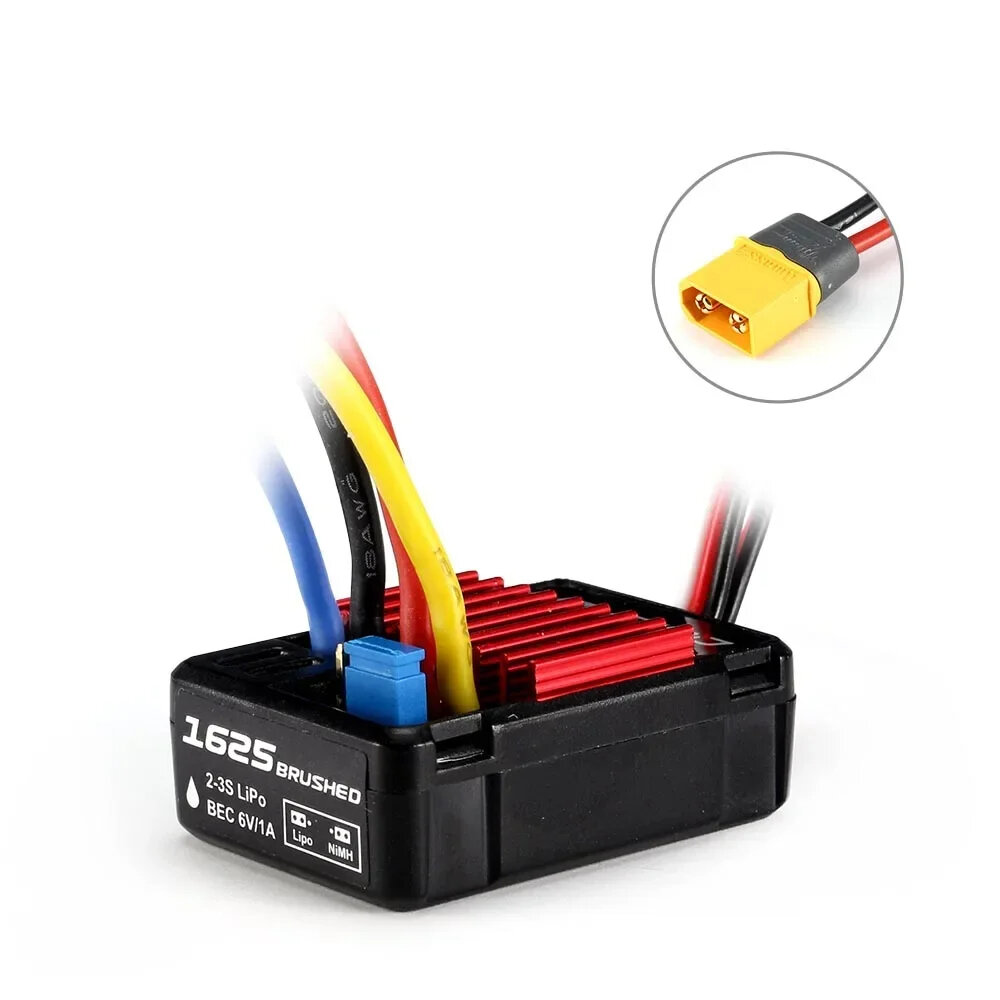

QuicRun WP 1625 Brushed:
Brand: HOBBYWING
Brushed/Brushless: Brushed
Waterproof: WP
Applicable Motor: Brushed
Vehicle Scale: 1/16 & 1/18 Touring Car/Monster/Truck
Motor Limit (KV Rating/T Count):
2S LiPo or 6 NiMH: RPM<30000 @7.2V(280/370/380 Size Motors)
3S LiPo or 9 NiMH: RPM<20000 @7.2V(280/370/380 Size Motors)
Fwd. Cont./Peak Current: 25A/100A
Rev. Cont./Peak Current: 25A/100A
Input: 2-3S LiPo/6-9 Cells NiMH
BEC Output: 1A/6V (Linear Mode)
Resistance: Fwd 0.003u03a9, Rev 0.003u03a9
Cooling Fan: Not Included
ESC Program Port: Jumper Cap
Running Modes: Forward/Reverse/Brake
Input Wires: Red-18AWG-75mm*1/Black-18AWG-75mm*1
Output Wires: Blue-18AWG-75mm*1/Yellow-18AWG-75mm*1
Input Connectors: Small-sized TAMIYA/T/XT60
Output Connectors: 4.0 Bullet Connectors (Female)
(Note: all the wire length above is the original length not the length you see from the outside.)
Size: 34x24x14mm
Weight: 33g

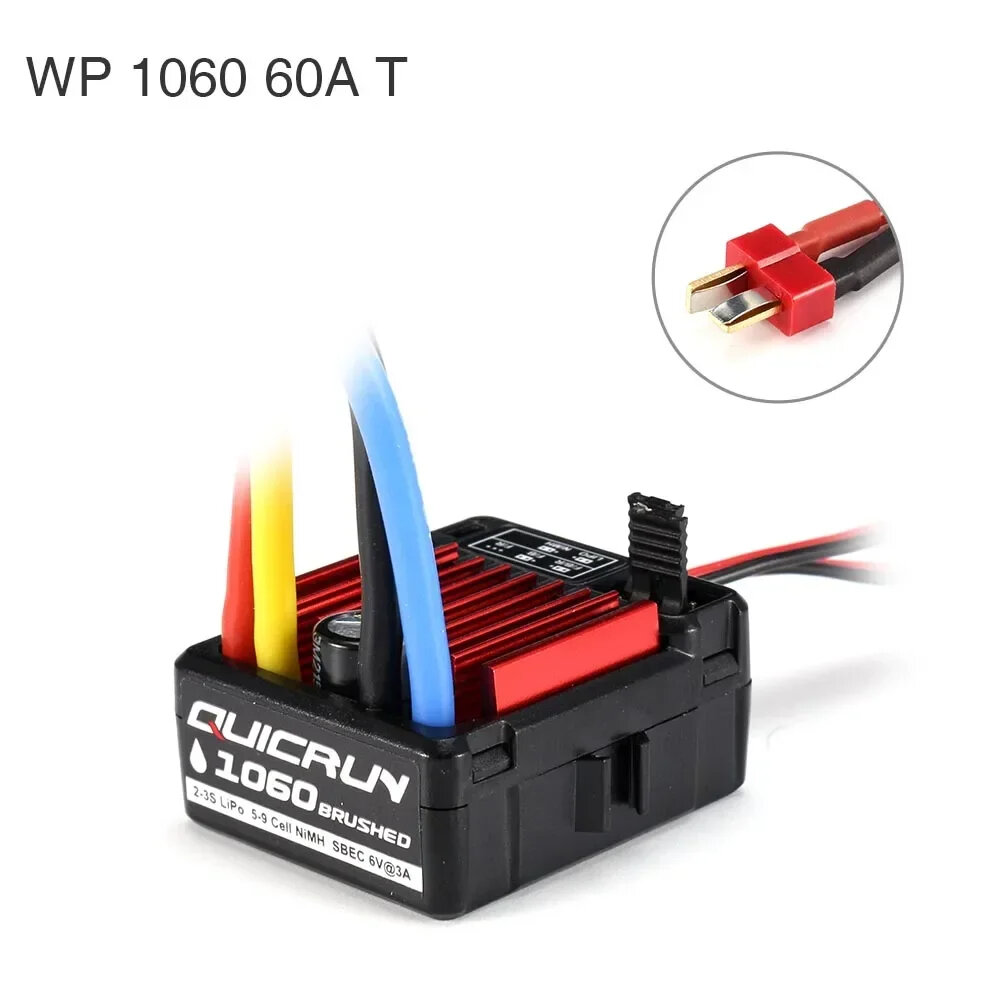

QuicRun WP 1060 Brushed:
Brand: HOBBYWING
Brushed/Brushless: Brushed
Waterproof: WP
Applicable Motor: Brushed
Vehicle Scale: 1/10 Touring Car/Short Course Truck/Monster/Truggy/Rock Crawler/Tank
Motor Limit (KV Rating/T Count):
2S LiPo: T≥12T or RPM<30000 @7.2V(540/550 Size Motors)
3S LiPo: T≥18T or RPM<20000 @7.2V(540/550 Size Motors)
Fwd. Cont./Peak Current: 60A/360A
Rev. Cont./Peak Current: 30A/180A
Input: 2-3S LiPo/6-9 Cells NiMH
BEC Output: 3A/6V (Switch Mode)
Resistance: Fwd 0.001u03a9, Rev 0.002u03a9
Cooling Fan: Not Included
ESC Program Port: Jumper Cap
Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse
Input Wires: Red-16AWG-100mm*1/Black-16AWG-100mm*1
Output Wires: Blue-16AWG-100mm*1/Yellow-16AWG-100mm*1
Input Connectors: Big-sized TAMIYA/T/XT60
Output Connectors: 4.0 Bullet Connectors (Female)
(Note: all the wire length above is the original length not the length you see from the outside.)
Size: 36.5x32x18mm
Weight: 48g

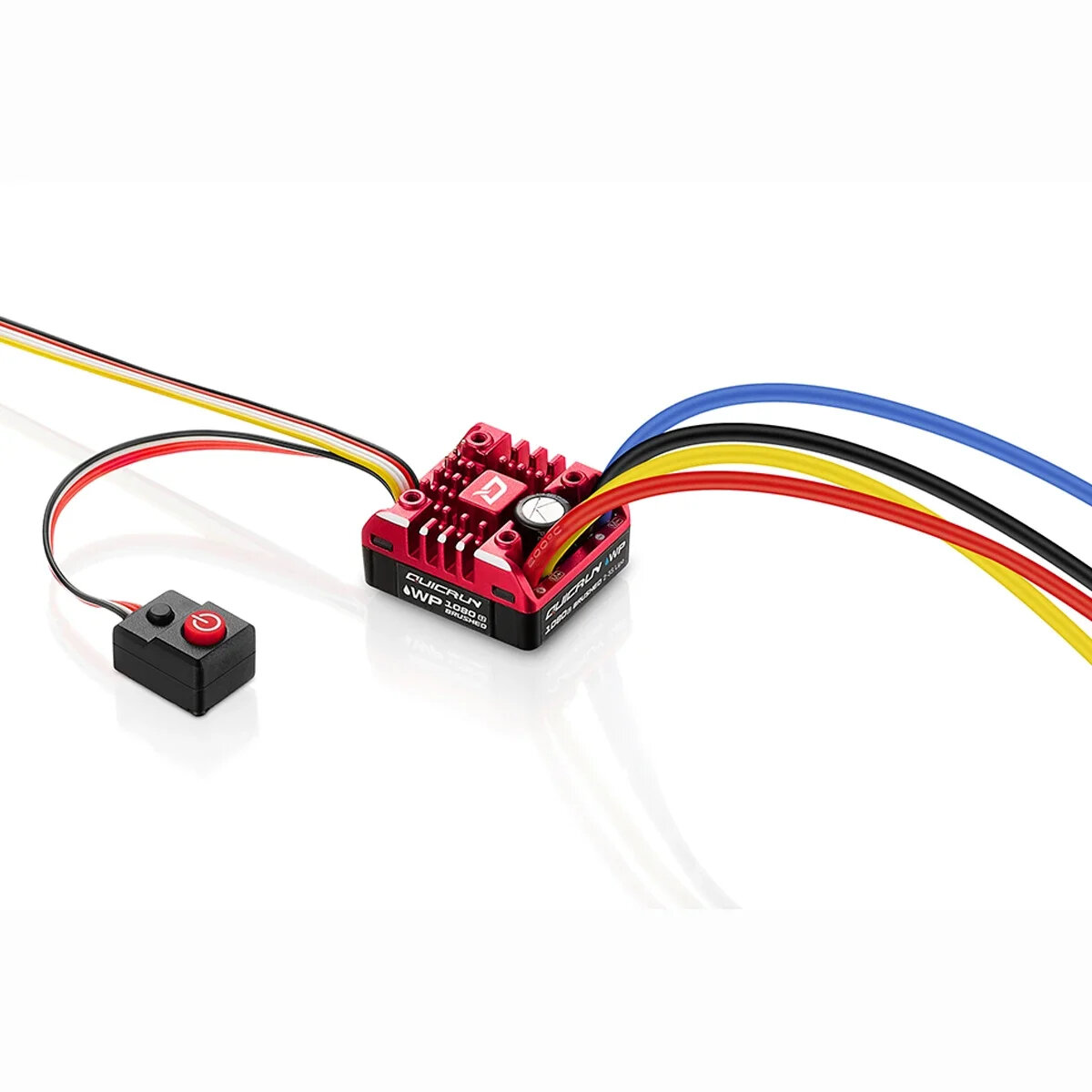

QuicRun WP1080 Crawler Brushed:
Brand: HOBBYWING
Brushed/Brushless: Brushed
Waterproof: WP
Applicable Motor: Brushed
Vehicle Scale: 1/8 & 1/10 Rock Crawlers
Motor Limit (KV Rating/T Count):
2S LiPo/6S NiMH: ≥10T or RPM<30000 @7.4V(540/550/775 Size Motors)
3S LiPo/9S NiMH: ≥16T or RPM<20000 @7.4V(540/550/775 Size Motors)
Cont./Peak Current: 80A/400A
Input: 2-3S LiPo/5-9 Cells NiMH
BEC Output: 6V/7.4V@3A (Switch Mode)
Cooling Fan: Not Included
SET Button on ESC: Supported
LED Program Box: Supported
ESC Program Port: Separate Program Port
Running Modes: Forward/Reverse
Input Wires: Red-14AWG-200mm*1/Black-14AWG-200mm*1
Output Wires: Blue-14AWG-200mm*1/Yellow-14AWG-200mm*1
Input Connectors: XT60/T
Output Connectors: No
(Note: all the wire length above is the original length not the length you see from the outside.)
Size: 36.2x31.6x17mm
Weight: 109g

QuicRun-WP-880-Dual Brushed ESC is a speed controller for BRUSHED motors.
Features:
1.1 Water-proof and dust-proof, suitable for all-weather condition races.
1.2 Small size with built-in capacitor module.
1.3 Four running modes to fit various vehicles
Fwd/Br/Rev
Fwd/Br
Fwd/Rev (also called "Crawler Mode")
Boat mode
(Note: Fwd =Forward, Br=Brake, Rev=Reverse)
1.4 Great current endurance capability.
1.5 Switch mode built-in BEC has powerful output.
1.6 Automatic throttle range calibration, easy to use.
1.7 Easy to set the ESC parameters with dial switches.
1.8 Multiple protections: Low voltage cut-off protection for battery / Thermal (Over-heat) protection / Throttle signal loss protection.

1060 60A Brushed ESC
Cont./Burst Current: ① Forward:60A/360A ② Backward:30A/180A
Input:2-3s Lipo,5-9 Cells NiMH
Cars Applicable:1/0 on-road,off-road ,Truggy,SCT,Crawler,Tank&Boat
Motor Limit: ① 2s lipo or 5-6cells NiMH :540 or 550 size motor RPMuff1c45000@7.2V
② 3s lipo or 7-9cells NiMH :540 or 550 size motor RPMuff1c30000@7.2V
Resistance:Forward-0.0008u03a9 Backward-0.0016u03a9
Built-in BEC:3A/6V(Switch mode BEC)
Dimension&Weight:36*30*18mm/40g
Run mode:① forward & brake & reverse mode
② forward &reverse mode
③ forward & brake

Package List:
1 * ESC
1 * Adhesive Label Paper
1 * Cable Binding Tape
1 * Manual (English)
